Cam-Lock Panel

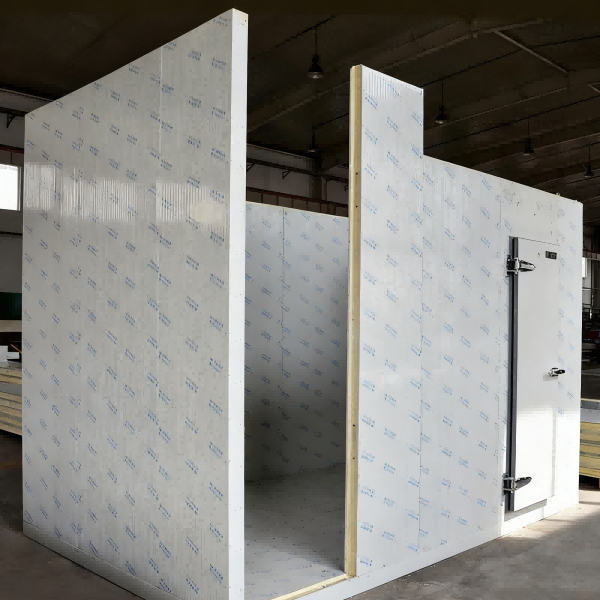

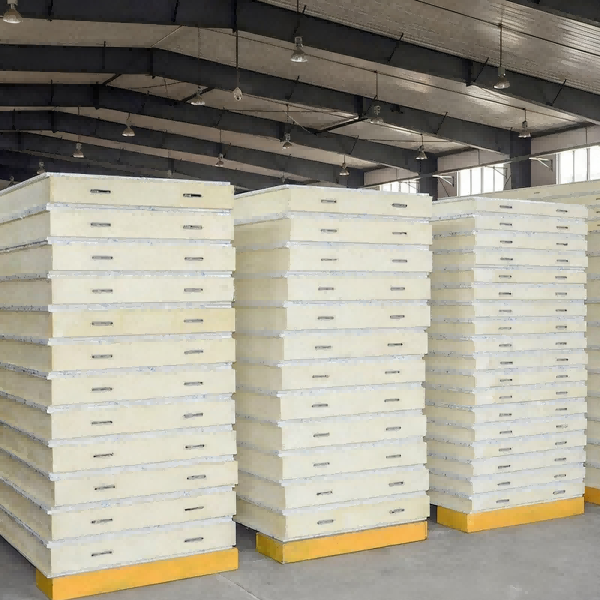

Cold storage hook plates are commonly used materials for assembling small and medium-sized cold storages or other boxes and rooms that require insulation and heat preservation. They are made with PU hard foam as the core and coated copper plates, etc. as the surface layer, and are formed by high-pressure casting machines through injection molding.
The design of the cold storage hook plate is convenient for classification and ventilation, which helps to improve the space utilization rate, keep the goods fresh and safe, and is an important part of cold storage management.
Product Performance Advantages
Types Density kg/m3 Nominal Thermal
Conductivity λ[W/(m·K)]
Thickness
mm
Thermal
Resstance R
m2·k/W
Thermal
Conductivity[W/(m2·K)] [W / m2·K))Cam-Lock Panel
46 0.024 50 2.23 0.45 75 3.28 0.31 100 4.32 0.23 150 6.4 0.16 200 8.42 0.12 250 11.02 0.09
Q1：It has excellent heat insulation and strong sealing performance
A:High-efficiency insulation materials such as polyurethane are used for filling to maintain a stable low-temperature environment inside the cold storage and reduce the energy consumption of the refrigeration equipment.
Special hooks and slots are used to connect the cold storage panels, effectively preventing the leakage of cold air and hot air from the outside, ensuring the stability of the environment inside the cold storage and avoiding situations such as condensation and icing that may affect the normal use of the cold storage.
Q2: Easy to install, with high strength and stability
A:Each prefabricated slab is surrounded by high-strength locks. During installation, they are directly connected through hooks without the need for complex installation tools and techniques. They are easy to install and disassemble, significantly improving construction efficiency, saving time and labor costs. They have high strength and rigidity, can resist certain external pressure and impact, ensuring the structural stability of the cold storage walls and ceilings, and are less prone to deformation or damage.
Q3: Good fire resistance performance
A:After adding flame retardants, the polyurethane material cold storage hook plate has certain flame retardancy and is a self-extinguishing material that is difficult to burn. Its softening point can reach above 250 degrees Celsius, and it will only decompose at higher temperatures. When burning, carbon deposits form on the surface of its foam, which helps to isolate the foam beneath and effectively prevent the spread of flames, ensuring the safety of cold storage use.
