A cold room is a walk-in storage facility designed to maintain a consistent temperature, typically ranging from -25°C to +15°C, preserving the quality of products like fruits, vegetables, meat, seafood, dairy, and pharmaceuticals. It is widely used for food packaging, long-term storage, and blast freezing.
With 27 years of experience in manufacturing cold room panels and refrigeration equipment, and a decade of expertise in cold room engineering, Archi is a global industry leader. Our panels feature PUF (Polyurethane Foam) insulation with thermal conductivity as low as 0.022 W/m·K, ensuring superior energy efficiency. We use high-density stainless steel or galvanized steel for durability and corrosion resistance. Our refrigeration systems are equipped with intelligent controllers for precise temperature management and energy savings.

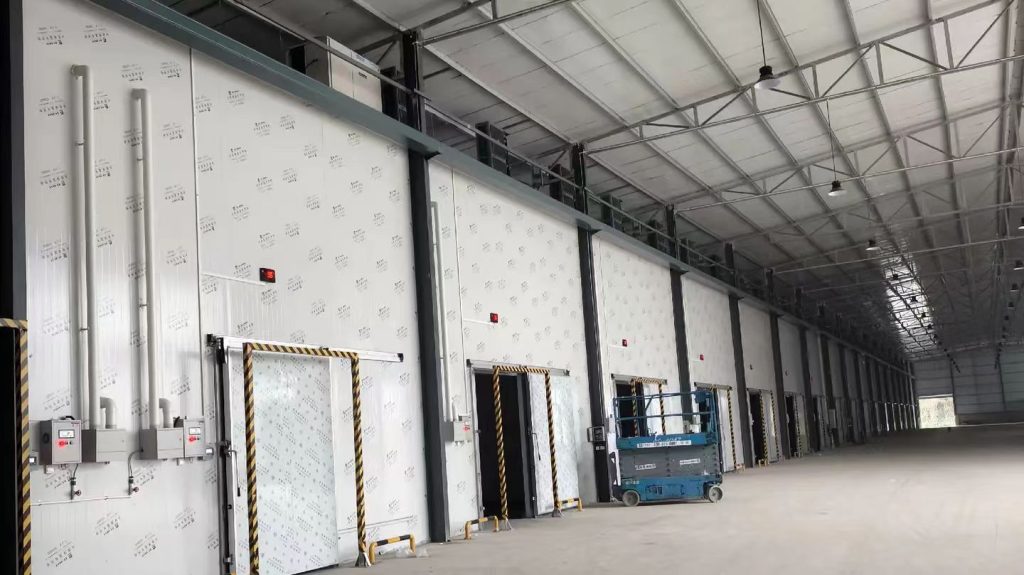

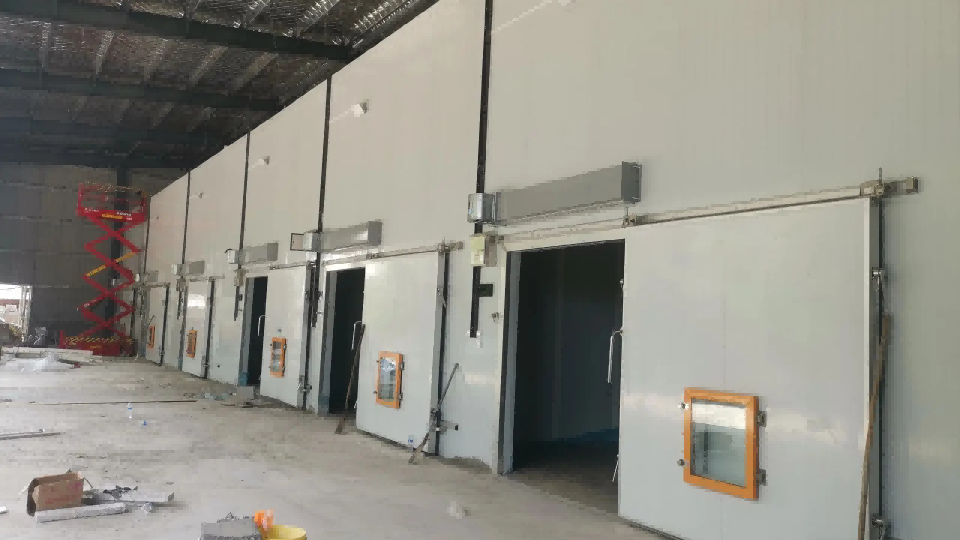

Archi has successfully completed projects worldwide, offering reliable and scalable cold room systems for industries of all sizes. Trust Archi to provide cutting-edge cold storage solutions that optimize efficiency and preserve product quality.
Specification
Item
Specifications
Color
White (Optional)
Insulation Material
Polyurethane
Thickness of Cold Room Panel
100mm,120mm,150mm, 200mm
Material of Panel Surface
Stainless Steel, Galvanized Steel
Thickness of Panel Surface Material
0.326mm, 0.5mm
Cold Room Door
Swing door 800mm(W)*1800mm(H)；2.62 ft (W) × 5.91 ft (H)
Connection Type
Cam Lock panel
Temperature range
(-)20℃ to (+)10℃
Refrigerant
R22/R404A/R507
Cold Room Standard Size
3m(L)*2m(W)*2.2m(H)；9.84 ft (L) × 6.56 ft (W) × 7.22 ft (H) 4m(L)*2m(W)*2.2m(H)；13.12 ft (L) × 6.56 ft (W) × 7.22 ft (H) 5m(L)*4m(W)*2.3m(H)；16.40 ft (L) × 13.12 ft (W) × 7.55 ft (H)
Advantages
Vegetables (Fresh Produce)：Preservation Temperature: 0°C to 4°C；Relative Humidity: 90-95%；Purpose: Prevents dehydration and maintains freshness.
Meats：Refrigeration (Short-Term Storage): 0°C to 3°C；Freezing (Long-Term Storage): -18°C to -24°C；Purpose: Prevents bacterial growth and maintains texture.
Seafood：Chilled Storage (Short-Term Preservation): -1°C to 2°C；Frozen Storage (Long-Term Preservation): -20°C to -30°C；Purpose: Ensures maximum freshness and prevents spoilage.
Energy Efficiency Ratio (EER)：3.5 to 4.0；Power Consumption: Approximately 1.2 to 1.5 kWh per cubic meter per day；Purpose: Balances precise temperature control with energy efficiency, reducing operational costs.
Durable with low maintenance costs：ensuring long-term performance / 20 - 30 years
Why Build a Cold Storage Facility and Who Needs It?
Cold storage facilities are critical for preserving perishable goods by maintaining precise temperature and humidity levels, typically ranging from -30°C to +15°C, depending on the product. Industries such as agriculture, food processing, pharmaceuticals, and logistics rely on these facilities to ensure product quality, extend shelf life, and comply with safety regulations. For instance, fresh produce requires temperatures of 0°C to 4°C with 85-95% humidity, while frozen goods need -18°C or lower. Pharmaceutical companies depend on cold storage to safeguard vaccines and medications, often requiring ultra-low temperatures (-70°C) for certain biologics. Restaurants, supermarkets, and e-commerce platforms also utilize cold storage to meet consumer demand for fresh and frozen products. By investing in a cold storage facility with advanced insulation, energy-efficient refrigeration systems, and IoT-enabled monitoring, businesses can reduce spoilage, minimize waste, and optimize supply chain efficiency, making it a vital asset for industries handling temperature-sensitive goods.
Cold Room Material

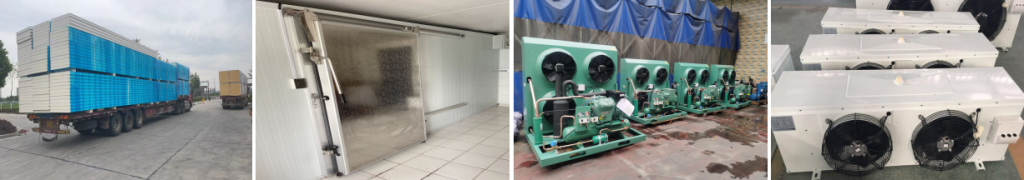

Archi Company is a manufacturer of panels, cold storage doors, refrigeration equipment and evaporators

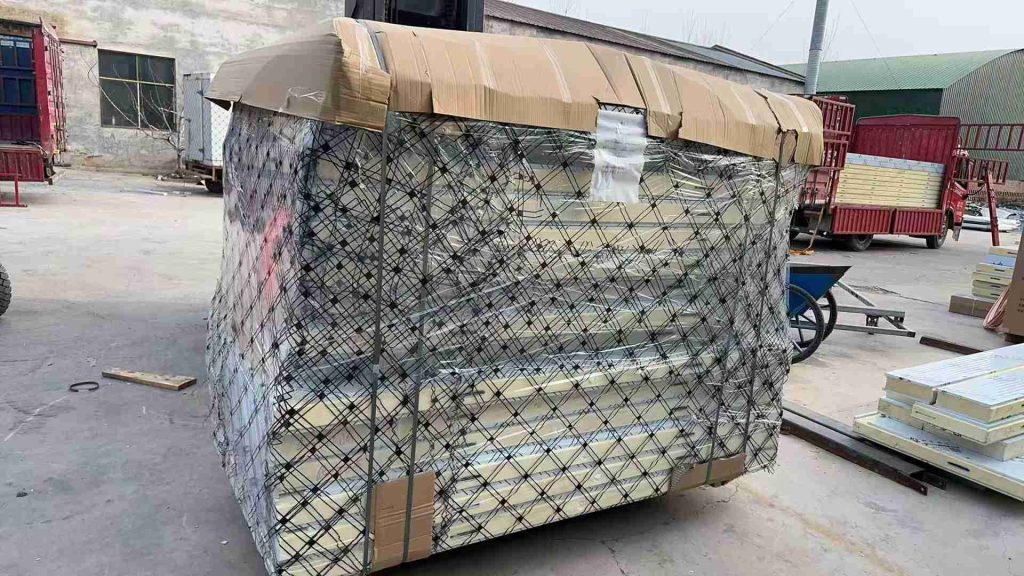

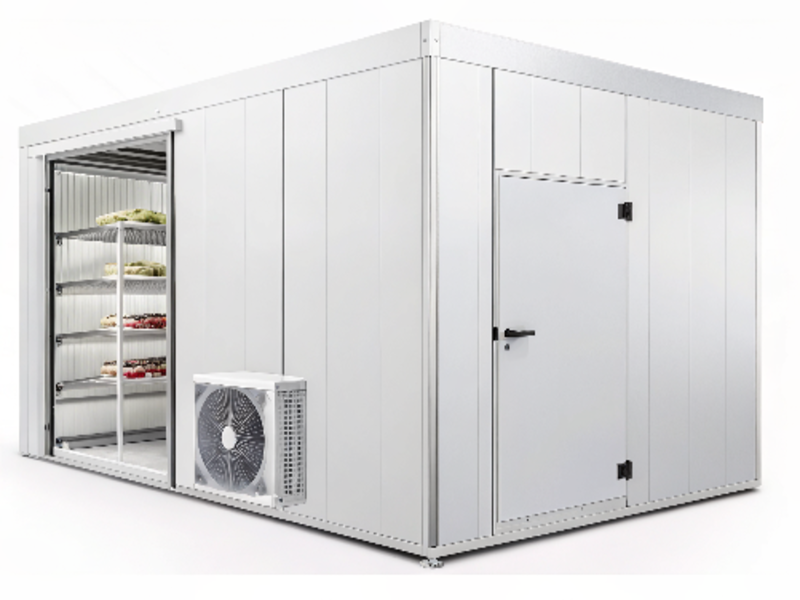

3*2*2.2 standard size cold storage, can be delivered directly.

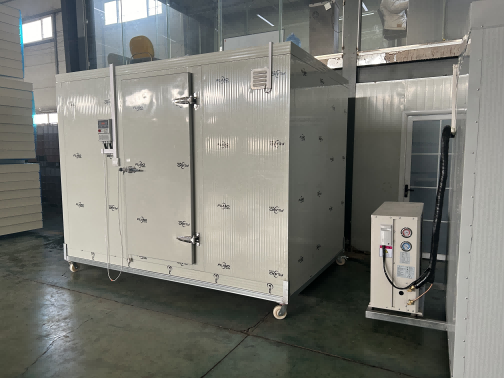

Mobile cold storage that can be plugged in and used without a land license

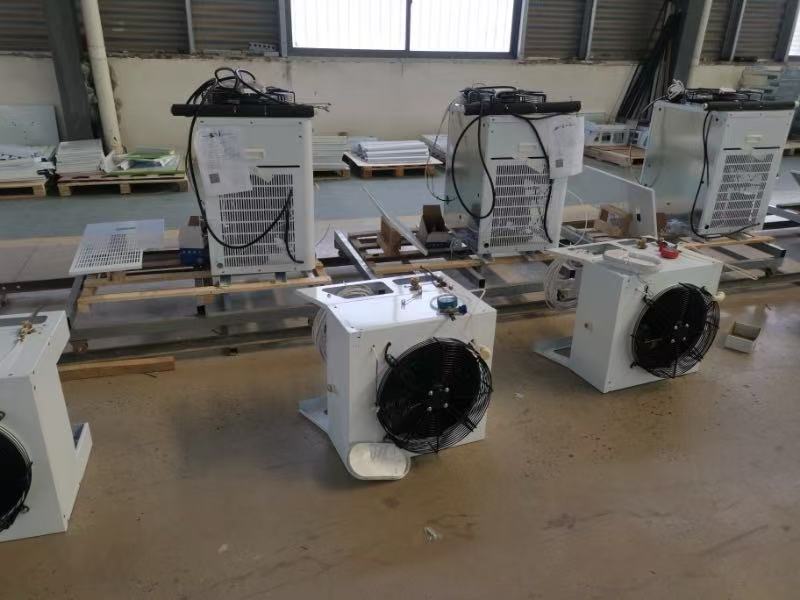

Integrated refrigeration equipment, no need to recruit refrigeration engineers
The cost is very low, there is no additional cost of late enclosure
Easy to install, according to the drawings only need three people two hours to complete the installation.
Price start at 1,899$ with all include

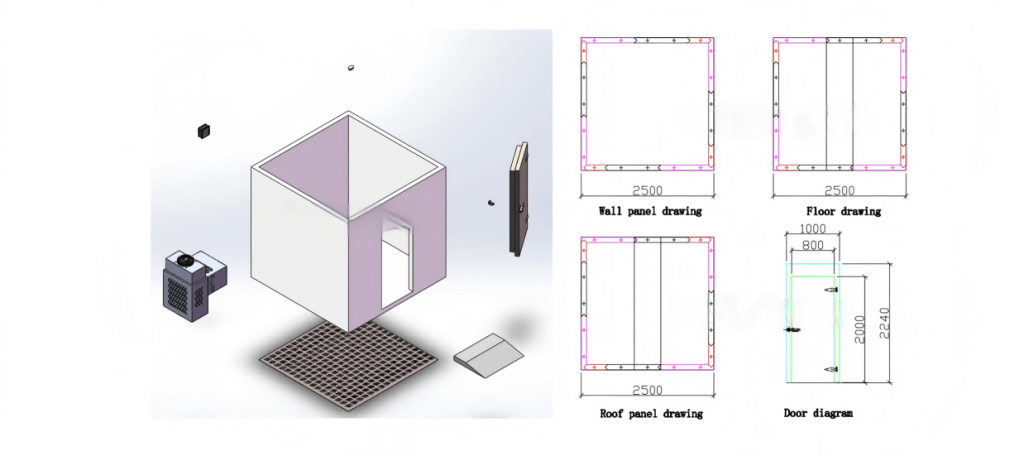

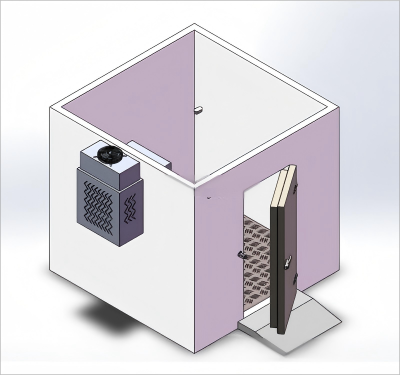

Install Drawing
Detail Introduction

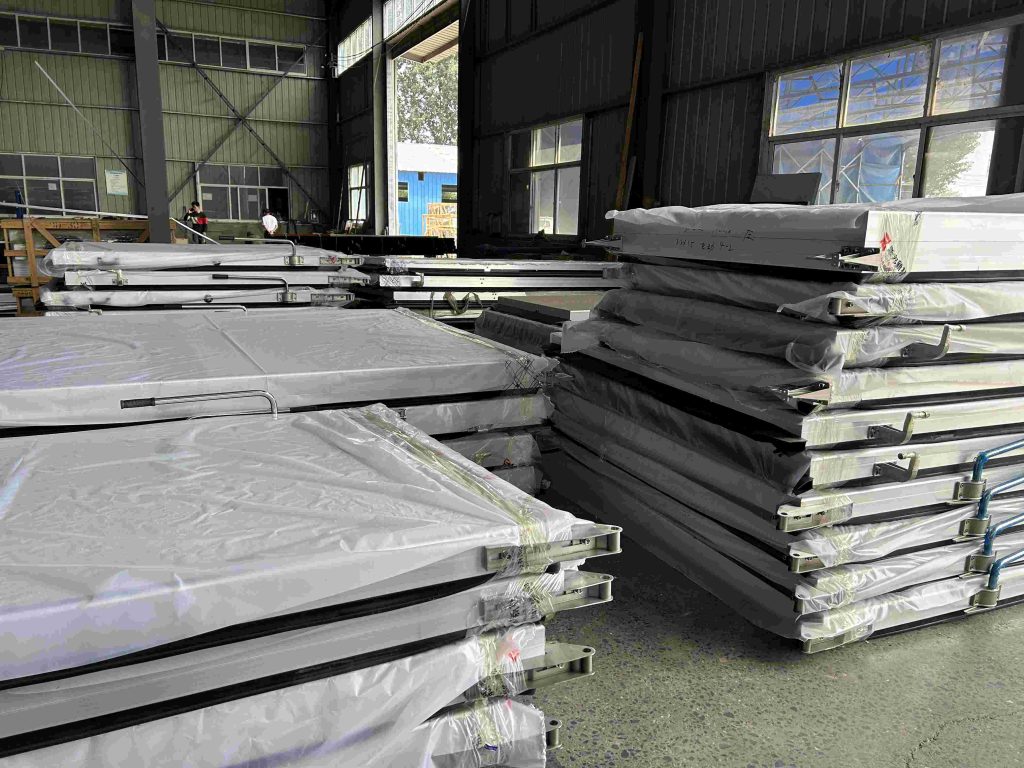

Cam-Lock Insulation Panels
Panels are tongue and groove, cam lock sealed
Walls, ceilings, and floors are constructed of polyurethane foam
Insulating rating of 100mm (4″) thick panels R-value 28

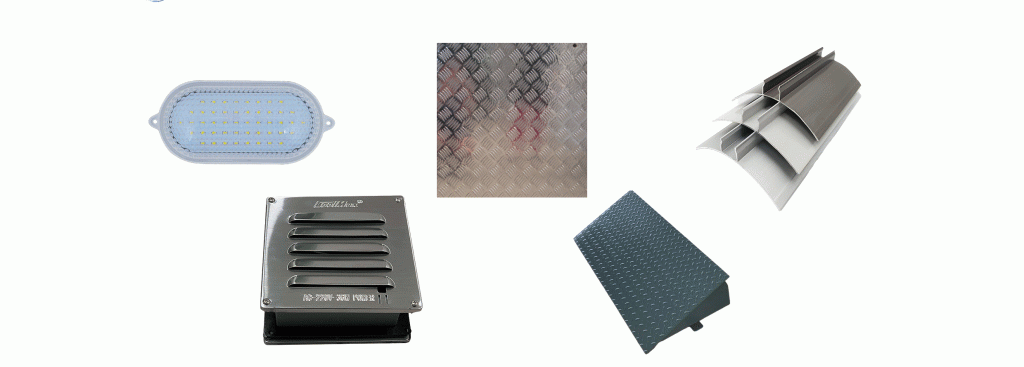

Aluminum Plate: Thickness is 3.0mm, increase cooling capacity
Arc Aluminum: To make the interior of the cold room neat
Ramp: Convenient for trolly to enter and exit
Accessories can help turn your walk-in into a workof art. Quick-ship coolers and freezers come with a handful of options.

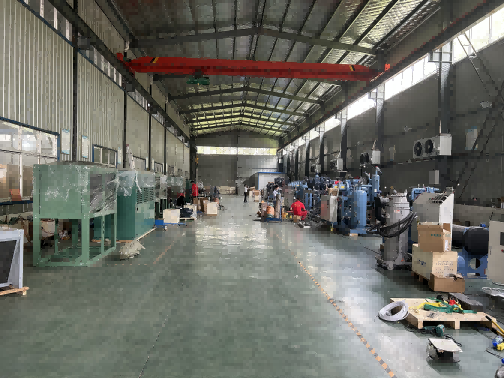

Archi Company Refrigeration Equipment Workshop
Why are our products selling so well and at such low prices?
Archi Company has three automatic coninuous lines for panel production, and the large quantity of orders ensures that ou production line is continuously working and themanagement cost is very low.
Archi company annual exports are about 100,000 square meters cold room panel, and the choice of customers all over the world is a trust in the qualty and cost of our products.
Archi company has been estabished for 25 years,every staf is elte, 99.5% of the production rate isthe certification of ourtechnology, which also makes the product costis very low.
Archi independently develops compressors and is also the general agent of bitzer in China. We produce up to 800 sets of refrigeration units every year.

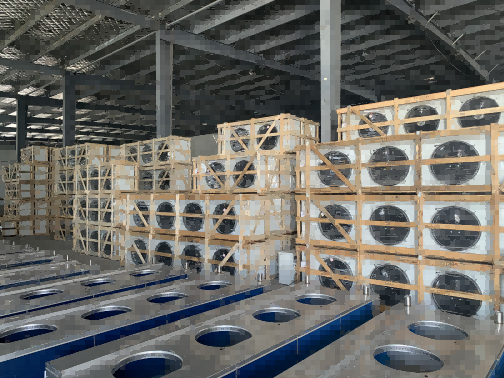

Archi produces evaporators independently, and has many cold storage projects in China. The huge quantity leads to our extremely low production cost.
Our Customers
Ecuador, Venezuela, Vietnam, Thailand, the United States, Canada, Saudi Arabia, etc
