Excellent Thermal Insulation PIR material has a low thermal conductivity, providing superior insulation compared to many other materials, which helps reduce energy consumption.
Strong Fire Resistance PIR sandwich panels are highly flame-retardant, effectively preventing the spread of fire and enhancing building safety.
High Strength and Lightweight Despite being lightweight, PIR sandwich panels have high structural strength, allowing them to withstand significant loads, making them suitable for large-span structures.
Corrosion and Moisture Resistance They are highly resistant to moisture and corrosive environments, making them ideal for damp or corrosive conditions.
Easy Installation Their lightweight and standardized dimensions make installation quick and cost-effective, saving time and labor.
Eco-Friendly PIR materials are recyclable, and their production process emits minimal harmful substances, aligning with environmental standards.
Effective Sound Insulation They provide excellent sound insulation, making them suitable for noise-sensitive environments.
Durability They are resistant to aging and weathering, ensuring a long service life and reduced maintenance costs.
Cost-Effectiveness Although the initial cost may be higher, the long-term energy-saving benefits make them economically advantageous.
Specification

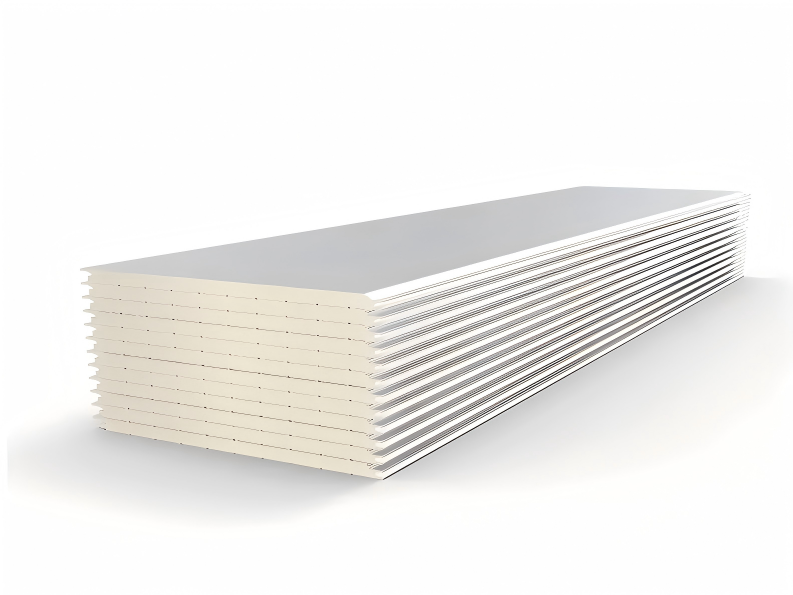

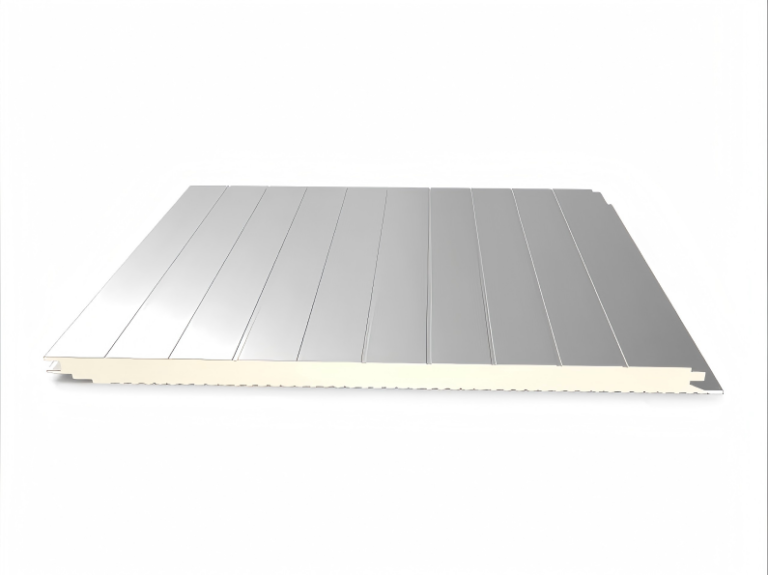

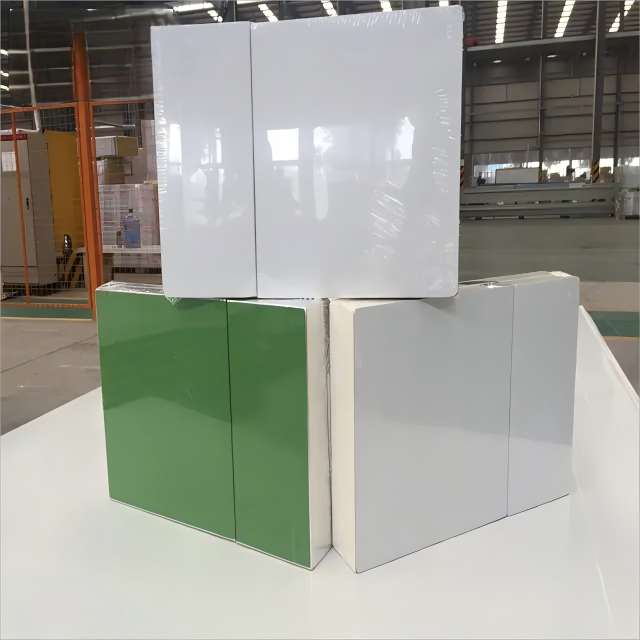

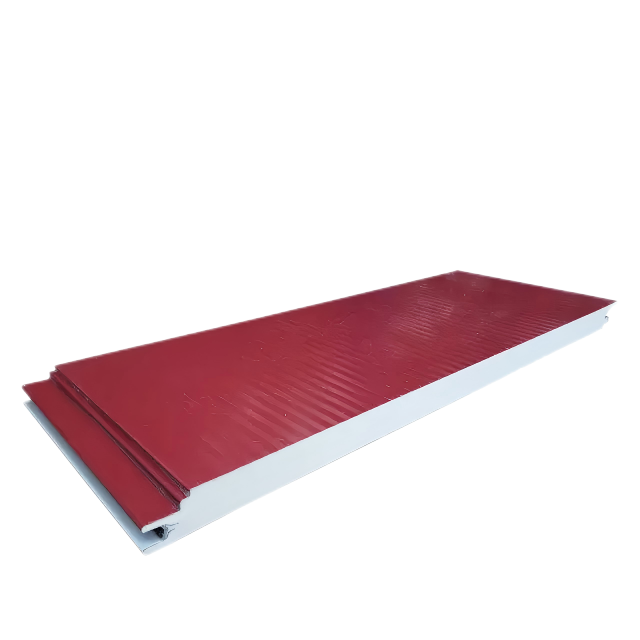

PIR Sandwich Wall Panels
Standard Panel Width（mm)
1000
Panel Length（mm)
Standard :11900 mm or customized
Standard Panel Thickness（mm)
50/75/100/120/150/200 mm
Standard Density
42-45 kg/m³
Inner Steel Sheet（mm)
0.3-0.8 mm
Outer Seed Sheet（mm)
0.3-0.8 mm
Steed Sheet Coating
PPGI color steel(PE、HDP、PVDF）/SS 201/SS 304
Care Heat Conduct Index
≤0.021 w(m·k)
Fire Rating
CN B1/ASTM E84 Class B/EN B
Stress Resilience
≥150 mpa
Air Tightness
≥97%
Thermal Resistance
≥47
Color
Color Options Available
Certification
ISO\CE\SGS\CNAS
Core Material
Polyurethane
Application
Industrial Building、Clean Room Prefab House
Advantages
This product is specifically designed for wall panels of large-scale industrial and commercial buildings.
The panels can be arranged horizontally or vertically, providing flexibility in layout.
The core material can be polyurethane, rock wool, glass wool, etc.
The concealed overlapping design gives the building a sleek and elegant appearance.
The double-layer sealed waterproof design ensures excellent waterproofing performance for the exterior wall system.
The panels can be freely transformed with or without seams, offering a variety of aesthetic designs that meet the aesthetic needs of buildings.
Connection Specification

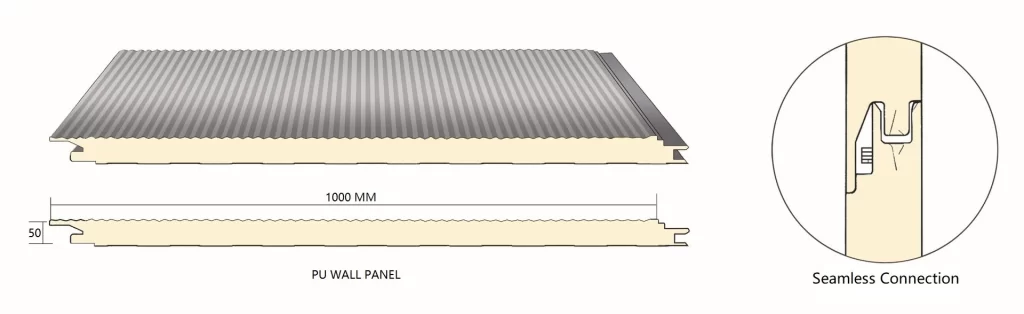

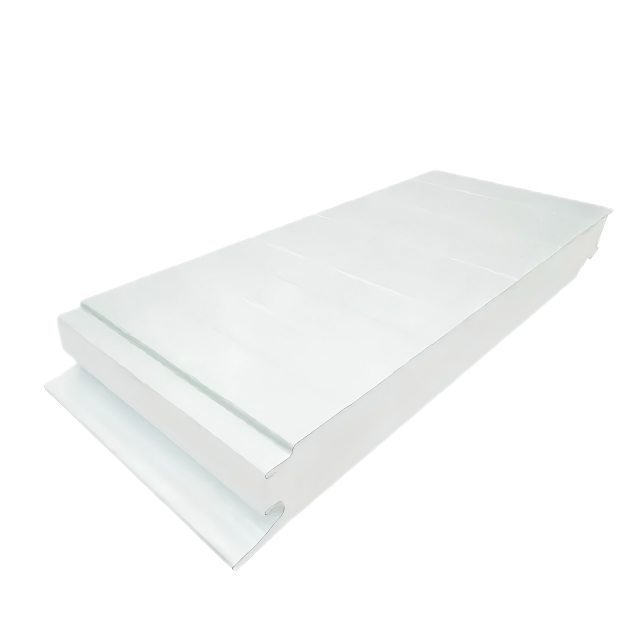

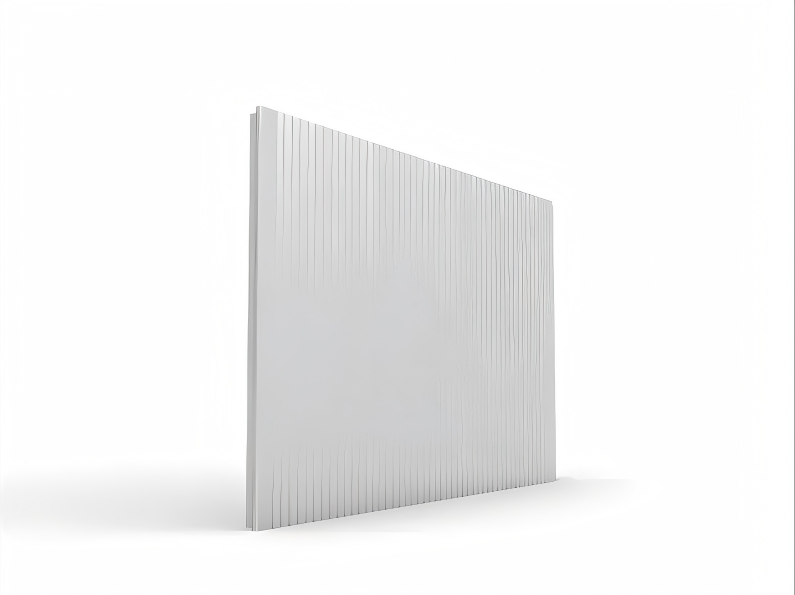

PIR Sandwich Wall Panel 3D profile
Connecting material
Aluminum U channels as floor tracks for wall panels
Aluminum or steel L channels to locate wall panels
Inside and outside corner covers
18# C steel/Hanging rods and kits
PVC conduits/Joints for hanging rods
Nuts/Aluminum beams
Hanging mushroom screws/M12 expansion bolts
Glue/PU spray foam
M6 expansion bolts/Rivets

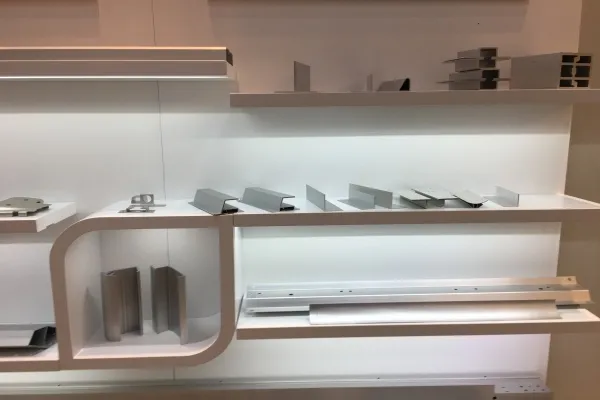

PIR Sandwich Wall Panel Accessories

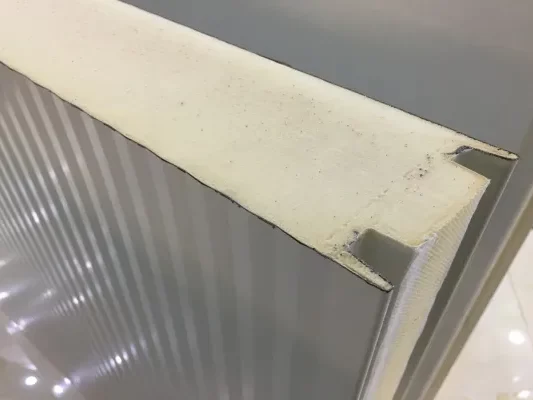

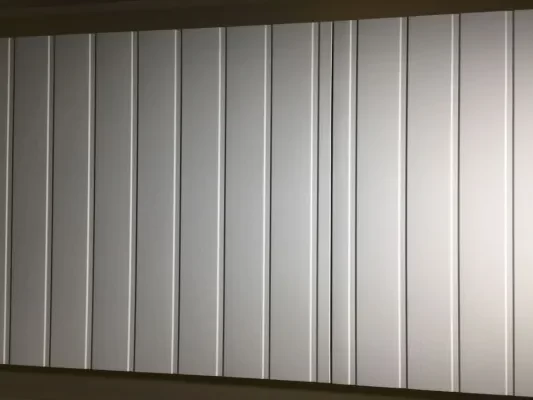

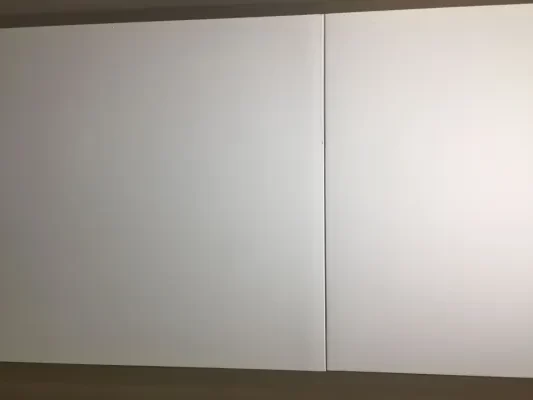

Surface Effect
PIR Sandwich Wall Panel Surface Effect
PIR Sandwich Panel Cost And Load
Archi Company exports about 100,000 square meters of panels per year
Why are our products selling so well and at such low prices?
Archi Company has three automatic continuous lines for panel production, and the large quantity of orders ensures that our production line is continuously working and the management cost is very low.
Archi Company annual exports are about 100,000 square meters, and the choice of customers all over the world is a trust in the quality and cost of our products.
Archi company has been established for 25 years, every staff is elite, 99.5% of the production rate is the certification of our technology, which also makes the product cost is very low.
China's industrial development is very advanced, and the cost of raw materials is very low, the price of one ton of steel coil is only about 600-800 Usd/ton, the raw material advantage is huge.
With the world's top 500 chemical companies signed agent to buy polyisocyanurate, independent research and development of the combination of raw materials, product lifetime warranty.
Depending on the thickness of the steel and the thickness of the core material, the price of the panel can be as low as 7 Usd/sqm
Archi PIR Sandwich Panel Workshop video

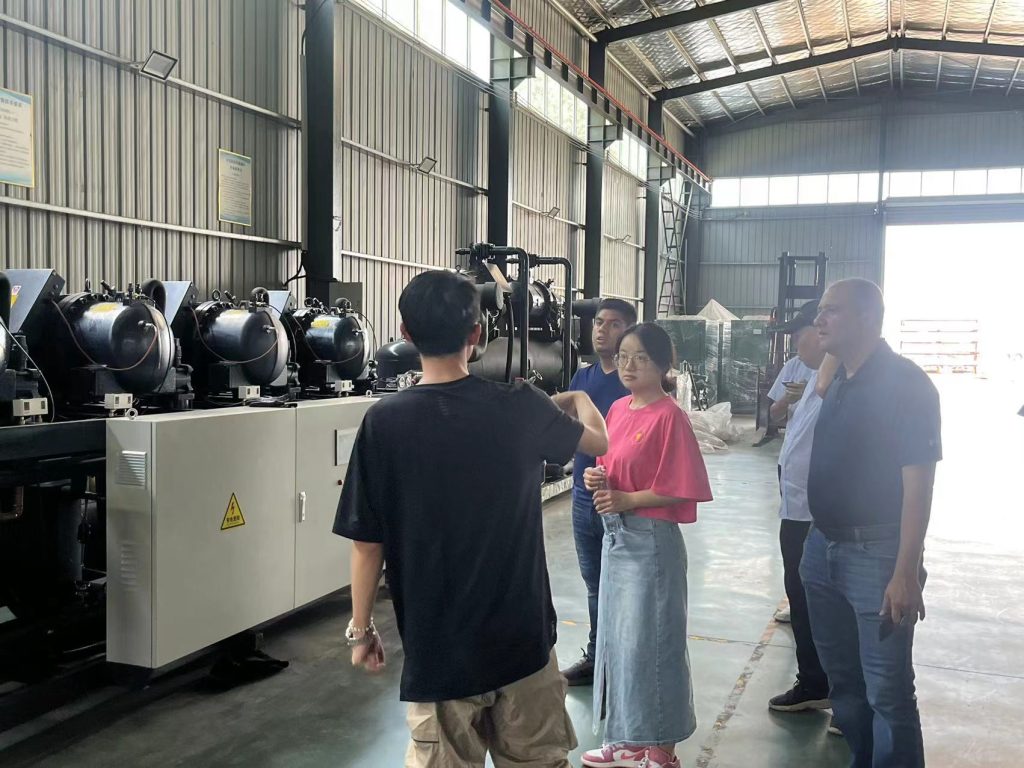

One Part of The Workshop of Archi Company
Our Customers
Ecuador, Venezuela, Vietnam, Thailand, the United States, Canada, Saudi Arabia, etc

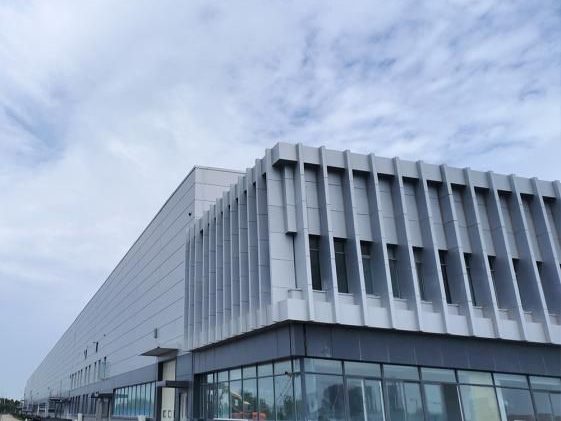

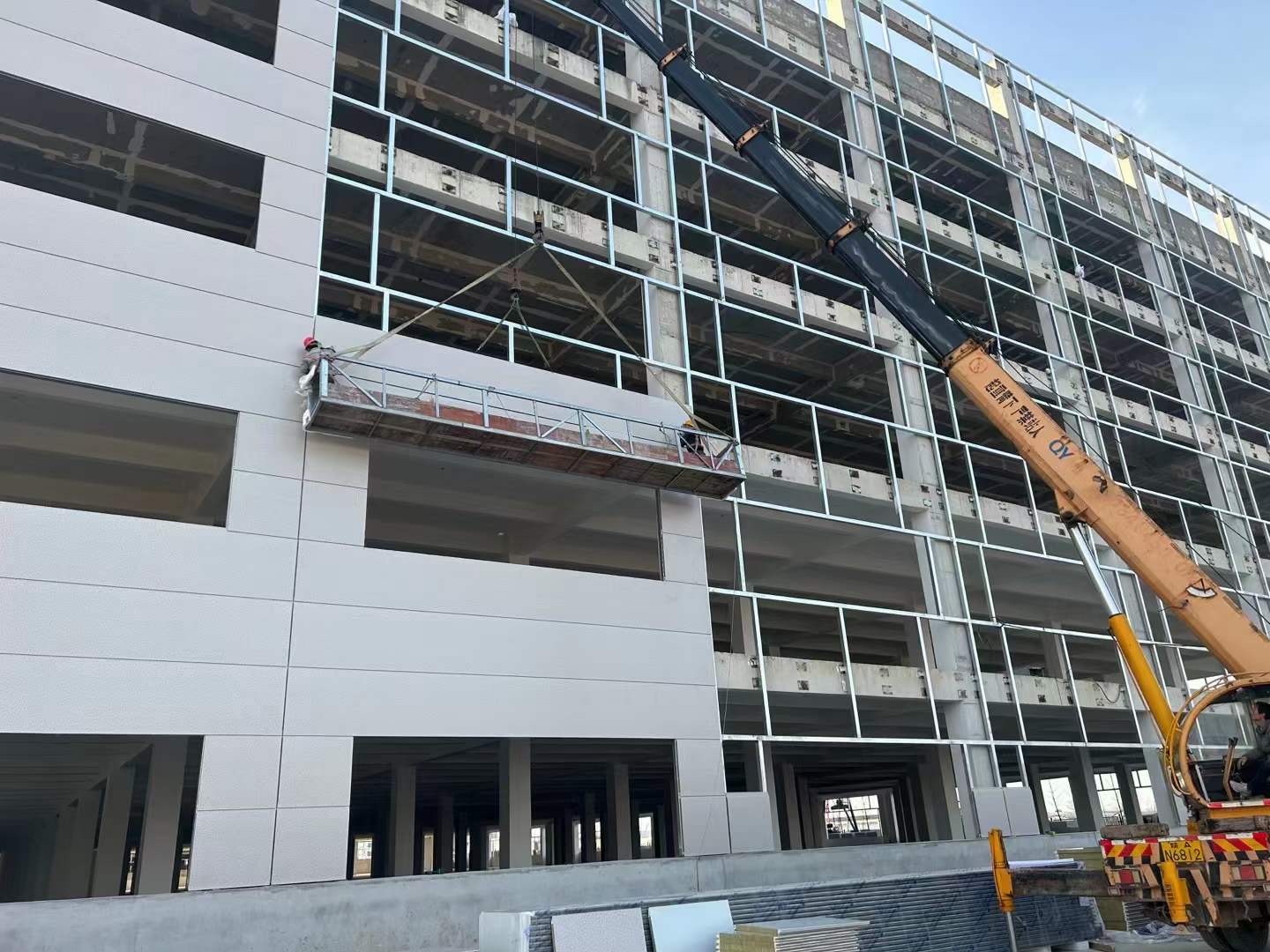

Engeneering Cases

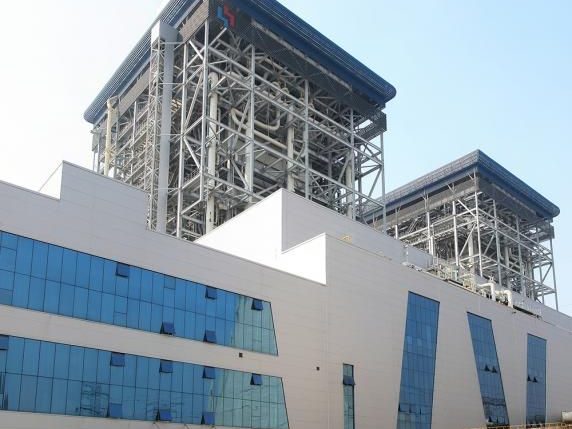

Power plant project in Malaysia; 25,000 m2 panel; Project general contract, completion time of three months
Beijing auto exhibition hall, using 75 mm panels, the amount of 40000 square meters. Installation materials and panels are provided.

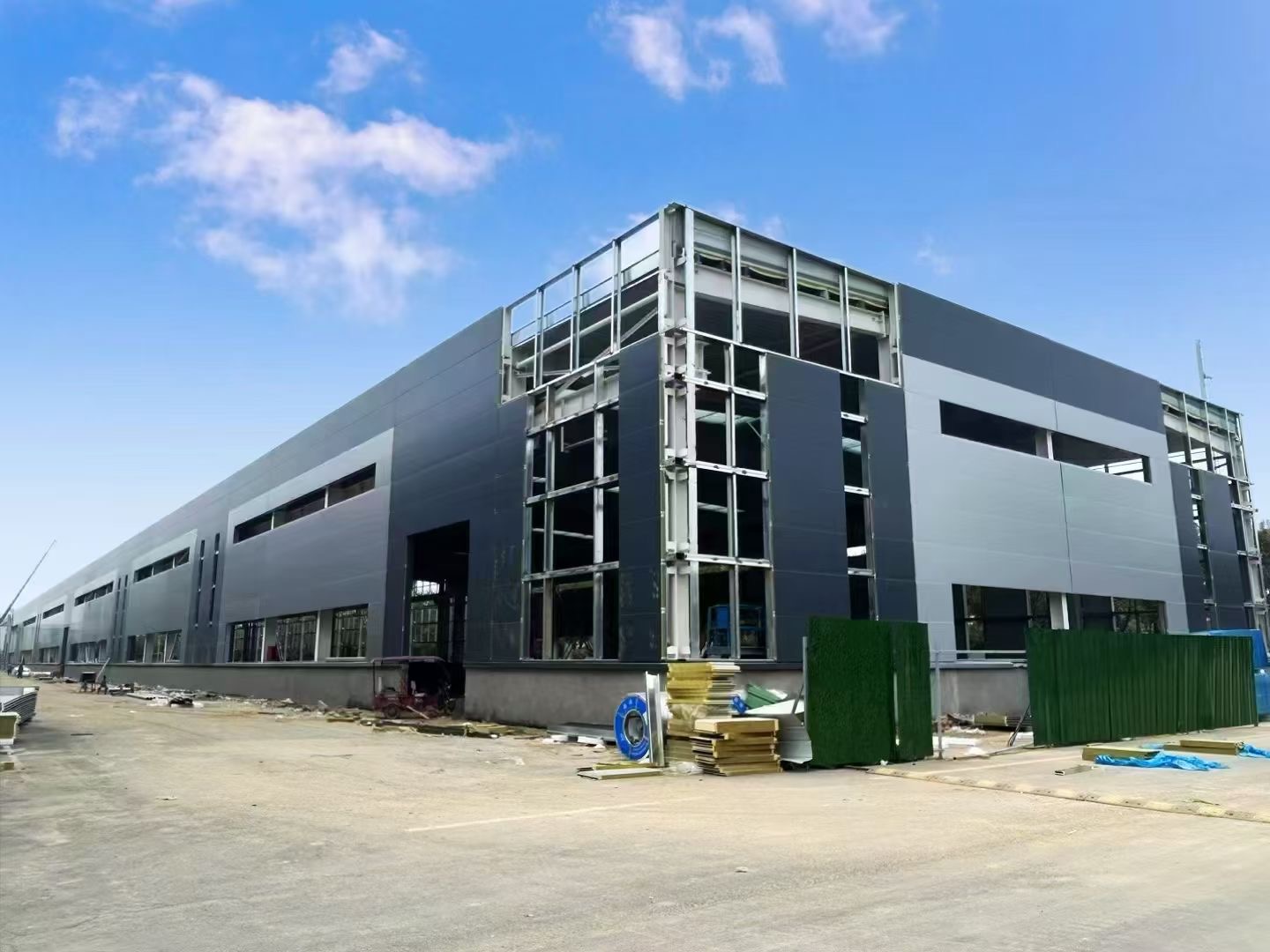

Shanghai Industrial Park, contracted three 24*120*7 meters of industrial plants, the use of PIR panel insulation
Indonesia residential building construction project, using PIR and rock wool mixed panels, A1 fire protection and insulation, using about 20,000 square meters of 50 mm panels.
El Salvador steel structure industrial plant project, using 50mm PIR panels, the customer's interior as a production room.

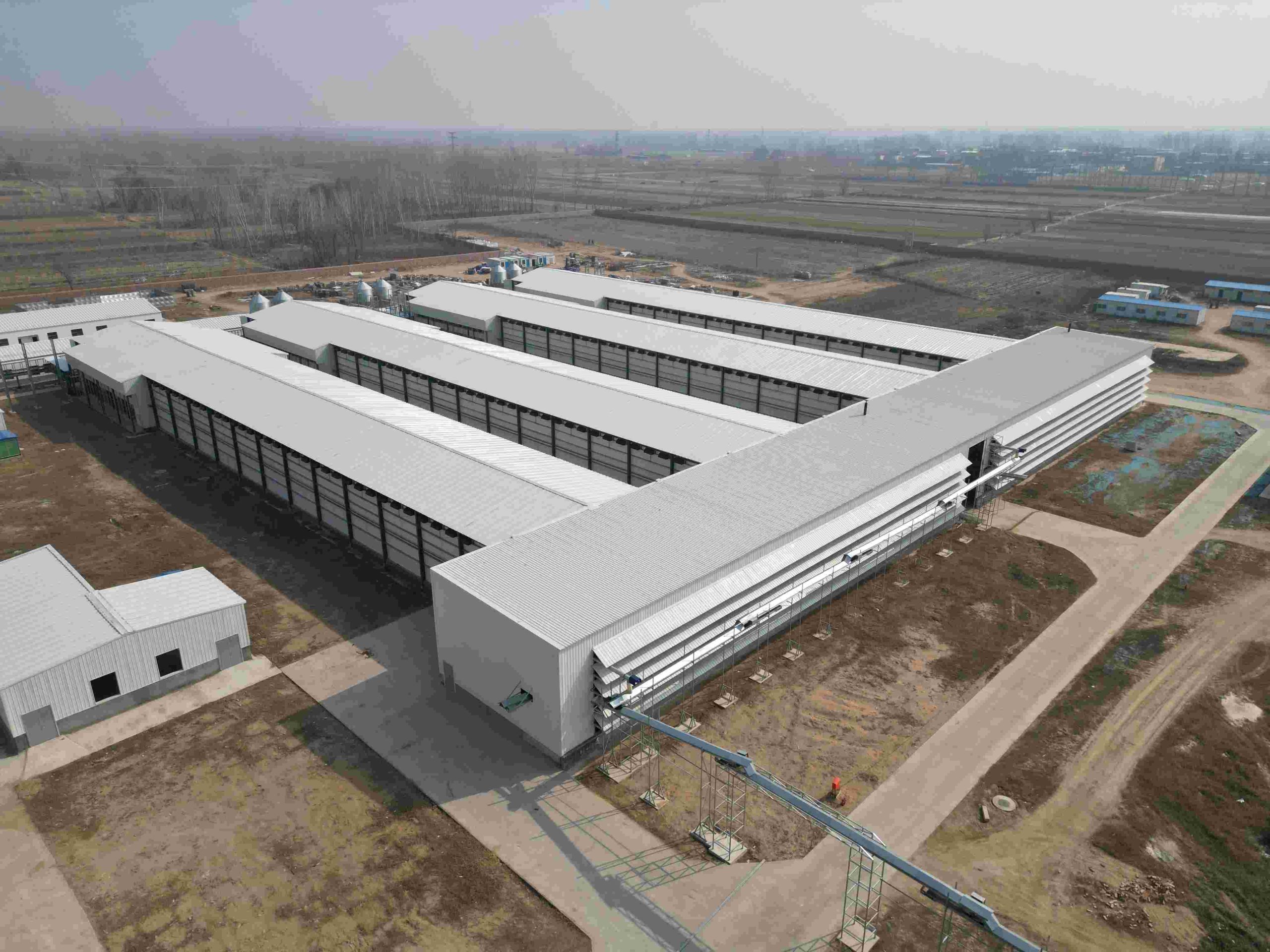

China chicken farm project, using 100mm PIR panels, the best insulation, the total of about 30,000 square panels.
