High fire resistance, effectively preventing the spread of flames / B1 (Flame-retardant material)
Suitable for extreme temperature environments, including freezing and refrigeration applications / -50°C to +120°C
High structural strength, capable of withstanding significant loads / 150 - 300 kpa
Durable with low maintenance costs, ensuring long-term performance / 20 - 30 years
Description
Polyurethane cold storage board is a kind of lightweight thermal insulation composite board specially designed for cold storage and refrigeration room. It is made of lightweight and high flame-resistant polyurethane as the core material, and color-coated steel plates and stainless steel plates as the surface material. It is produced in a continuous production line in a factory, and it has the features of thermal insulation, sealing, corrosion resistance, anti-aging, flame retardancy, non-toxicity, lightweight, firmness and pressure resistance.
Connection Specification

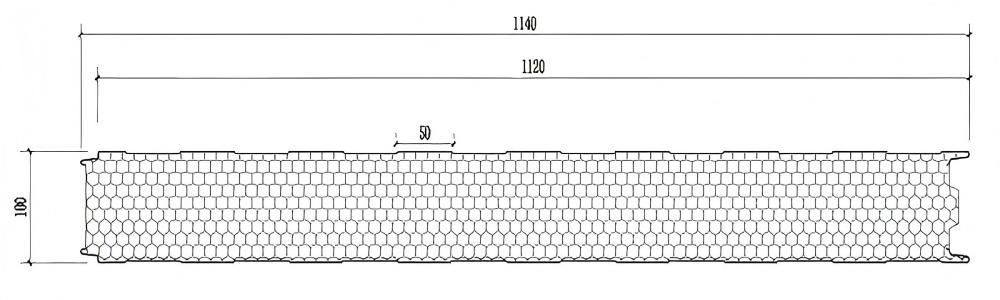

PIR Sandwich Cold Storage Panel 3D Profile
Mushroom head screw
Flower basket screw
Rivets
18# C steel
Glue
PU spray foam
M6 expansion bolts

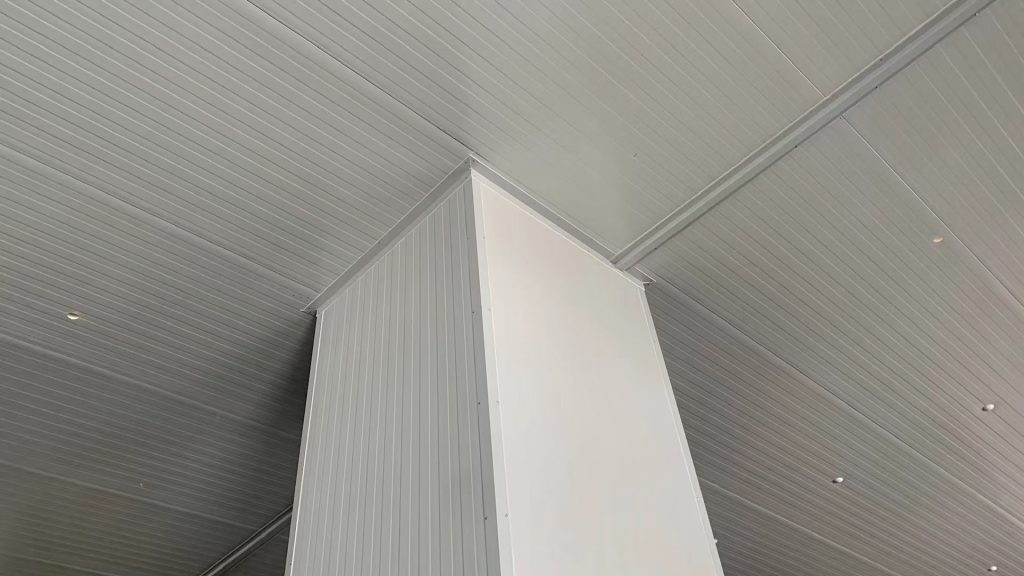

Inside and outside corner covers

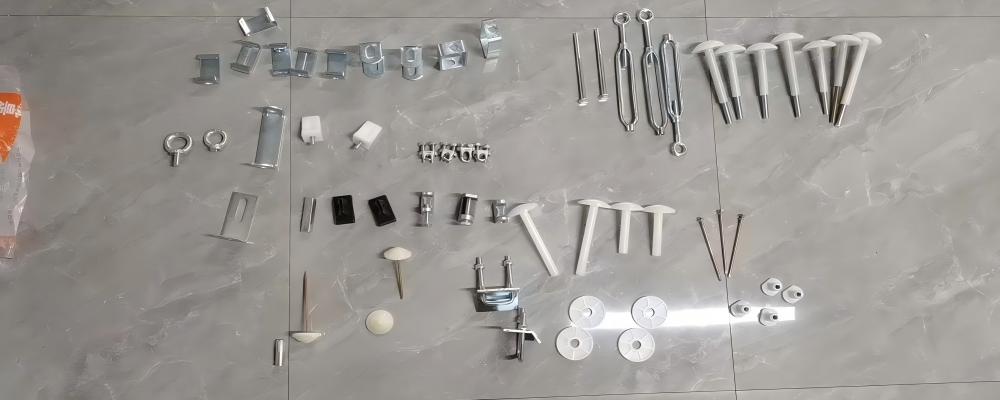

PIR Sandwich Cold Storage Panel Install Material
PIR Sandwich Cold Storage Panel Installation Part

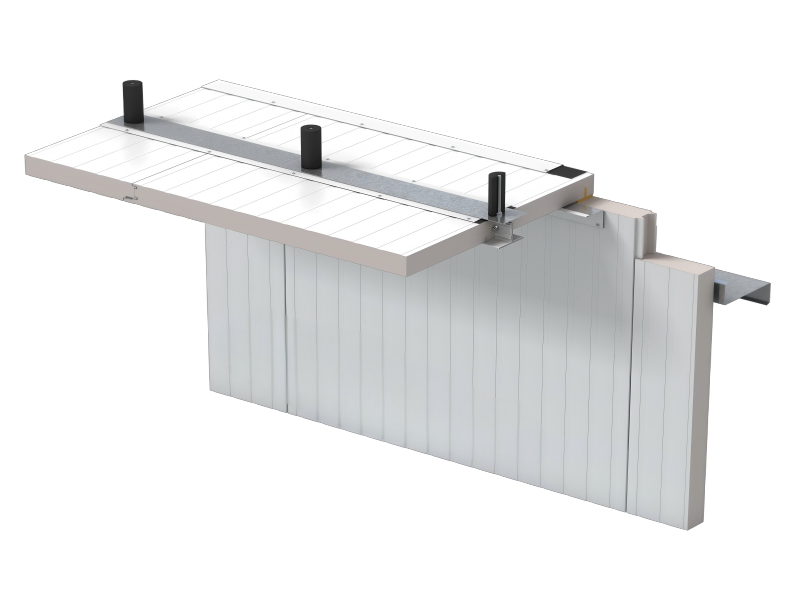

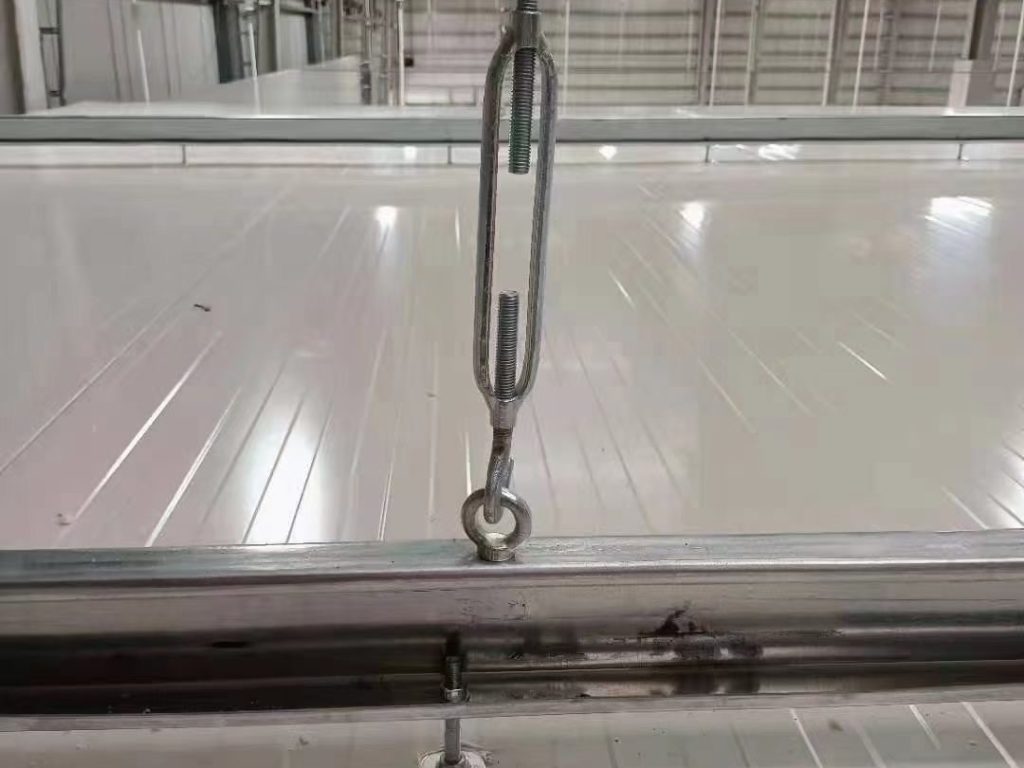

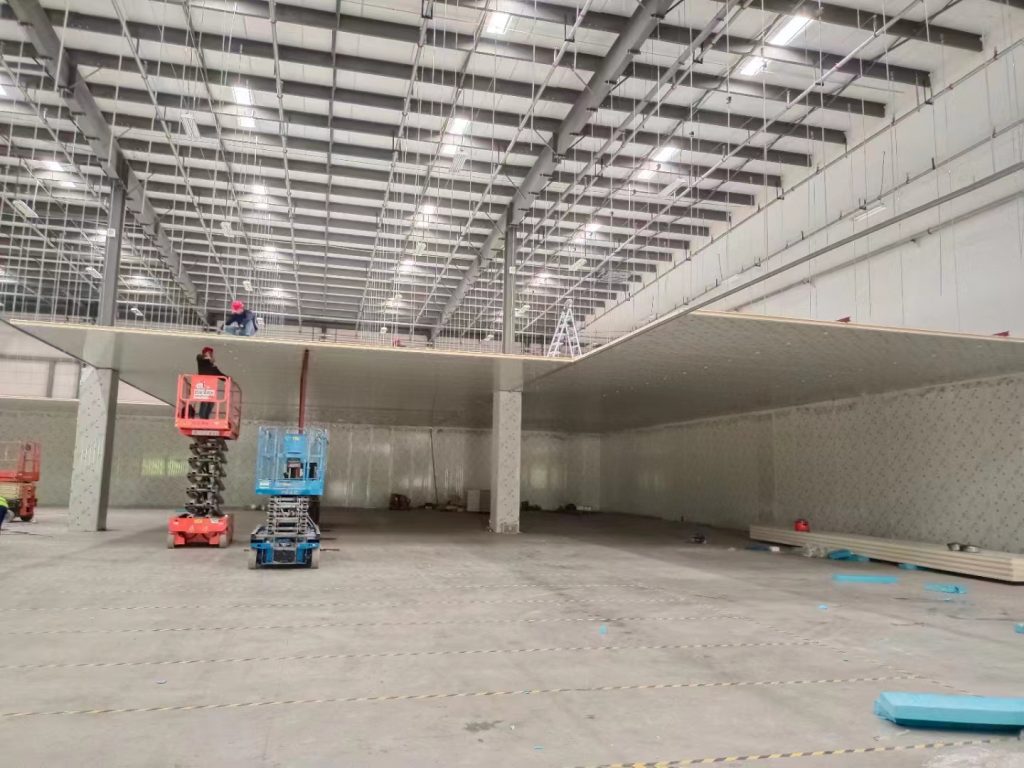

PIR Sandwich Cold Storage Celling Panel Install
Use wire rope, mushroom head, flower basket ceiling
The top spacing is 5 meters and a lifting point
The support of steel structure is required
The height of five meters requires a suspended ceiling

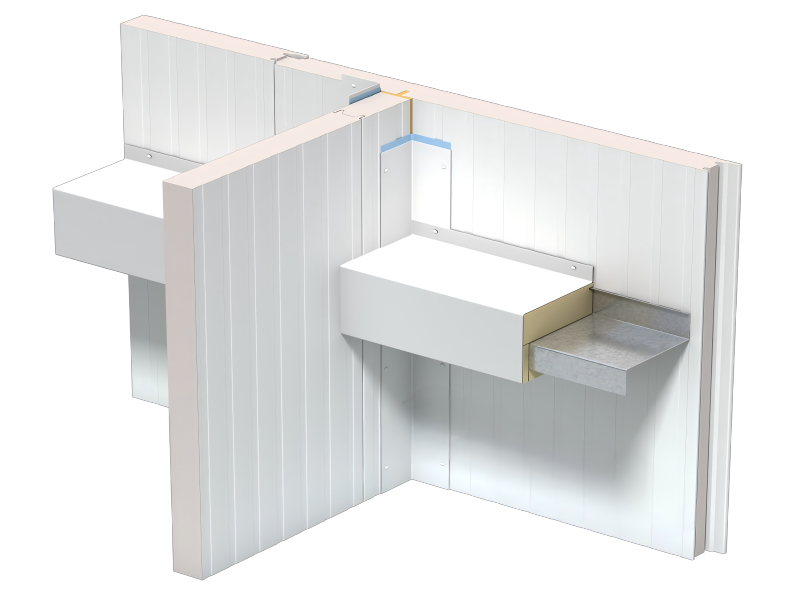

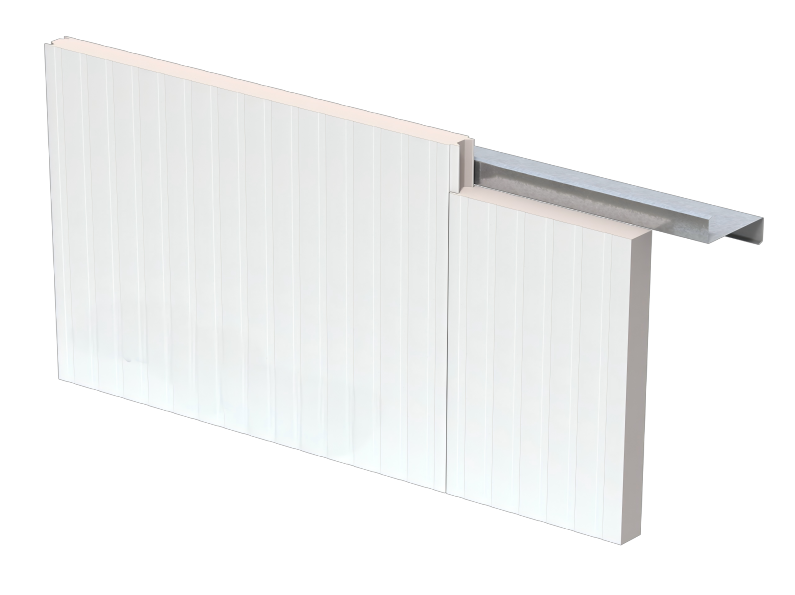

PIR Sandwich Cold Storage Wall Panel Install
Use L-shaped and U-shaped connection materials
Ground embedment according to insulation (100 or 150mm)
Use silicone and Pu foam to connect the panels
Use rivets and mushroom head screws to secure the panel

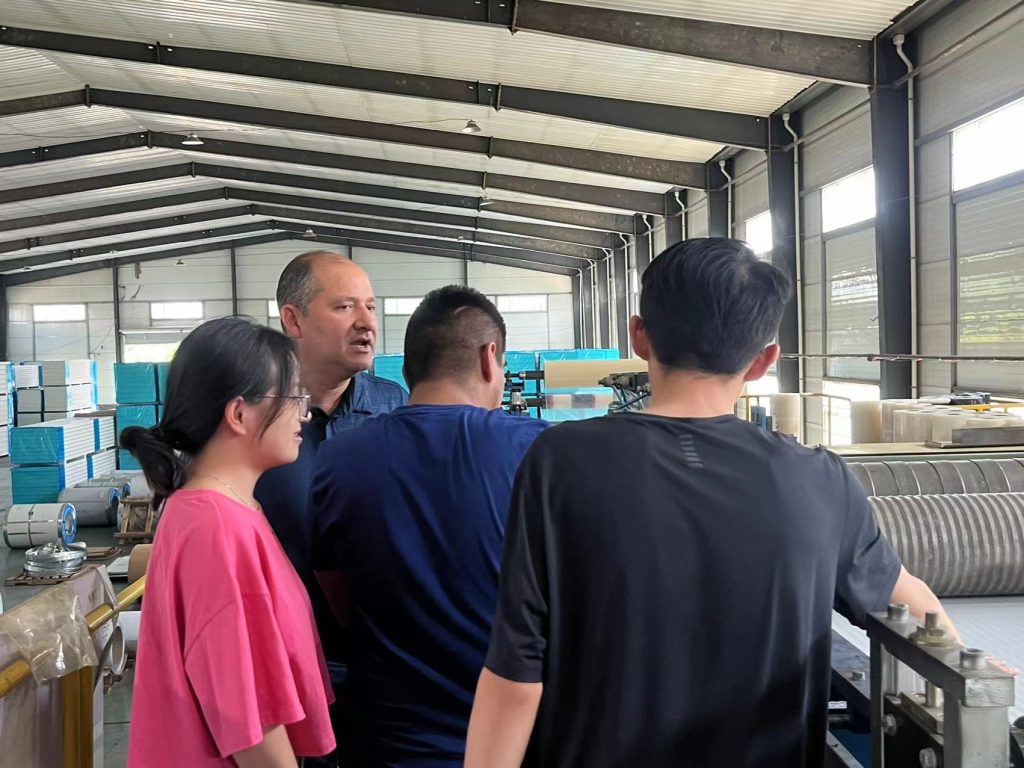

Archi Company Panel Workshop presentation

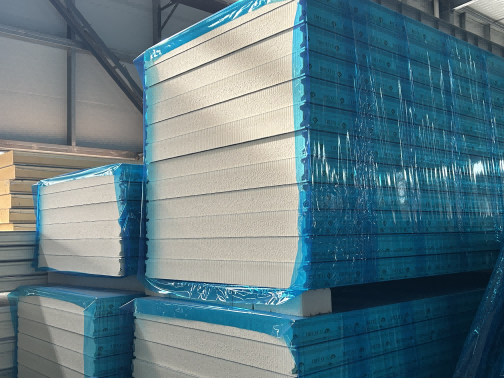

Archi Company Workshop Show

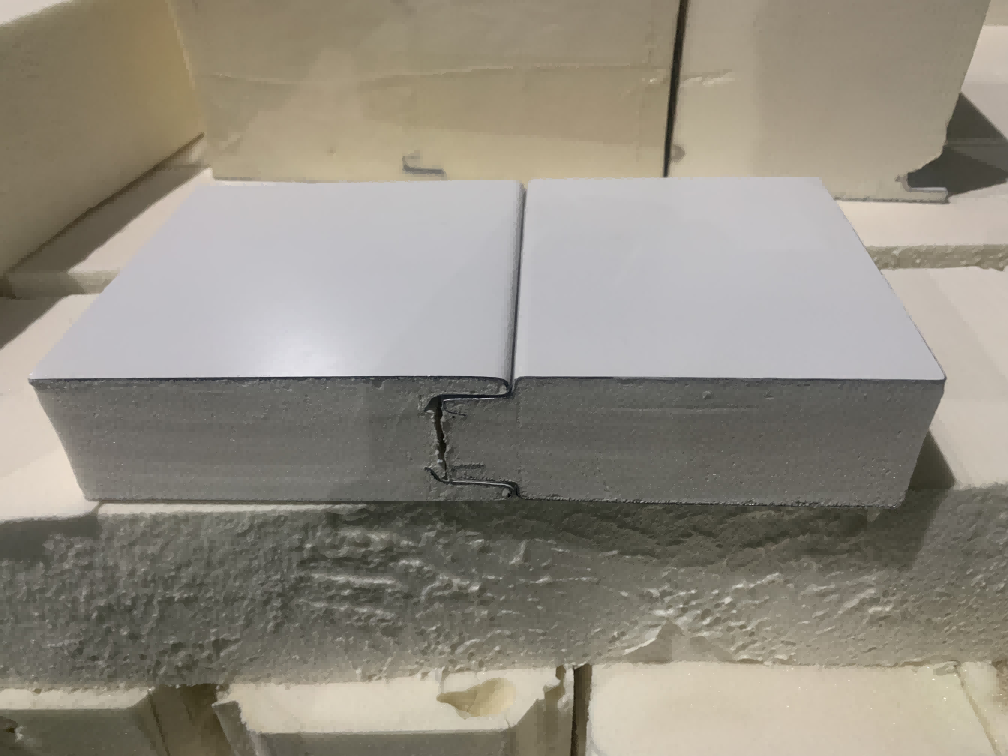

50/75;100-250 mm Different Connections Are Shown
PIR Sandwich Panel Cost And Load
Archi Company exports about 100,000 square meters of panels per year
Why are our products selling so well and at such low prices?
Archi Company has three automatic coninuous lines for panel production, and the large quantity of orders ensures that ou production line is continuously working and themanagement cost is very low.
Archi company annual exports are about 100,000 square meters, and the choice of customers all over the world is a trust in the qualty and cost of our products.
Archi company has been estabished for 25 years,every staf is elte, 99.5% of the production rate isthe certification of ourtechnology, which also makes the product costis very low.
China's industial developmentis very advanced, and the cost of raw materials is very low,the price of oneton of steel colis only about 600-800 Usdton,the raw materaladvantage is huge.
With the world's top 50 chemical companies signed agent to buy polyisocyanurate , independent research and develop men of the combination of raw materials. product lifetime warranty.
Depending on the thickness of the steel and the thickness of the core material, the price of the panel can be as low as 7 Usd/sqm
Our Customers
Ecuador, Venezuela, Vietnam, Thailand, the United States, Canada, Saudi Arabia, etc
Our Cold Storage Project Case
Ecuador flower banana storage cold storage
The use of 100mm cold storage panels is about 3000 square meters
With lifting door 2*2.5
Use stainless steel electric Swing cold storage door
Use the air curtain machine
Use DL-200 evaporator
Beijing food cold storage
The use of 120mm cold storage panels is about 1500 square meters
Use PLC electronic control system
Use manuel swing cold storage door
Use the air curtain machine
Use DL-200 evaporator
Vietnam bread seafood food factory project
The use of 50/120mm cold storage panels is about 8000 square meters
With lifting door 2.2*2.7
Use stainless steel electric Swing cold storage door
Use the air curtain machine
Use DD-160 evaporator
Thailand fruit cold storage
The use of 150mm cold storage panels is about 4000 square meters
With lifting door 2*2.5
Use stainless steel electric Swing cold storage door
