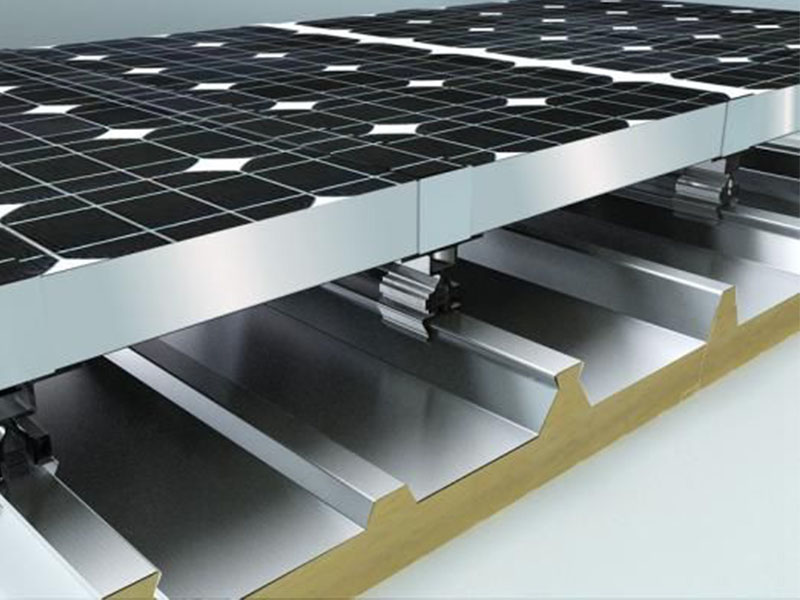

Portable photovoltaic energy panel

    • The roofing system has remarkable thermal insulation and energy-saving effects.

    • Efficient utilization of clean energy promotes low-carbon and environmentally friendly practices.

    • Standardized design enables simple and quick installation.

    • Systematic design increases the service life of the product.

Share

Description

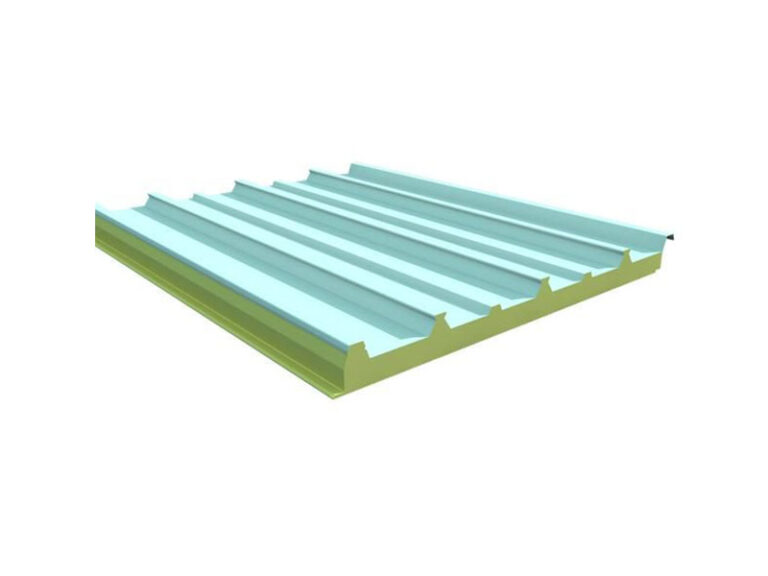

The board is continuously cold-formed from high-quality color-coated steel, with heat-insulating and flame-retardant polyurethane liquid injected into the middle. After undergoing processes such as high-pressure mixing, foaming, curing, and more, the core material and surface material are strongly combined. The entire production process is completed online using the world's most advanced OMS continuous automatic polyurethane production line.

Performance

Portable Photovoltaic Energy Panels
Standard Panel Width(mm)10003.28ft
Standard Panel Length(mm)Standard size:11900mmCustomized: 2000mm-21000mm6.56-68.89ft39.04ft
Standard Panel Thickness(mm)45/50/60/75/80/1001.77/1.96/2.36/2.95/3.14/3.93 in
Standard Density40±2kg/m³
Inner Steel Sheet(mm)0.3-0.8mm
Outer Seed Sheet(mm)0.3-0.8mm
Steed Sheet CoatingPPGI color steel(PE、HDP、PVDF)/SS 201/SS 304
 Care Heat Conduct Index≤0.021w(m·k)
Fire RatingCN B1/ASTM E84 Class B/EN B
Stress Resilience≥150mpa
Air Tightness≥97%
Thermal Resistance≥47
ColorColor Options Available
CertificationISO\CE\SGS\CNAS
Core MaterialPolyurethane
ApplicationIndustrial Building、Clean Room
Prefab House


Advantages

  1. The roofing system has remarkable thermal insulation and energy-saving effects.
  2. Efficient utilization of clean energy promotes low-carbon and environmentally friendly practices.
  3. Standardized design enables simple and quick installation.
  4. Systematic design increases the service life of the product.

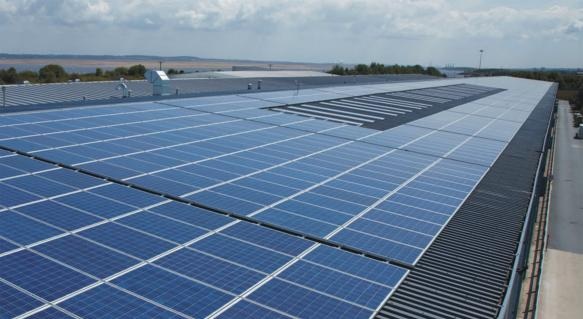

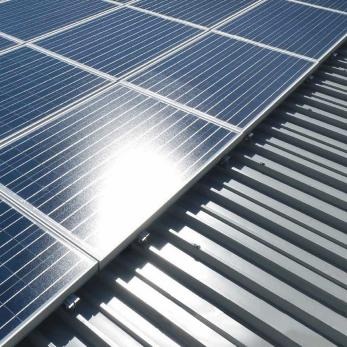

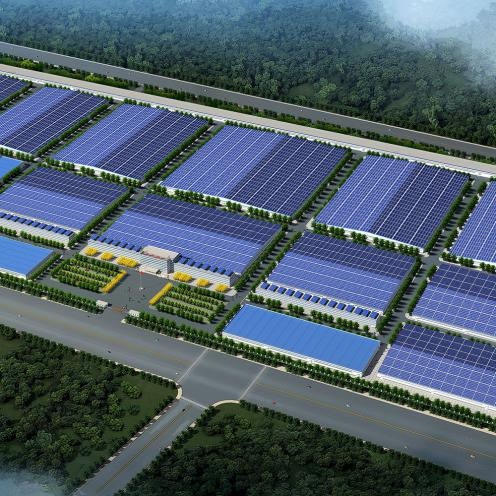

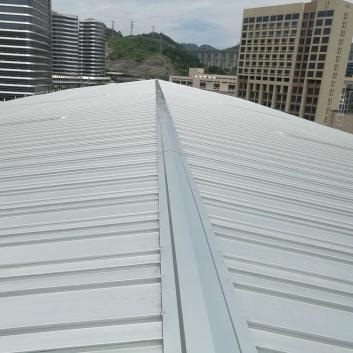

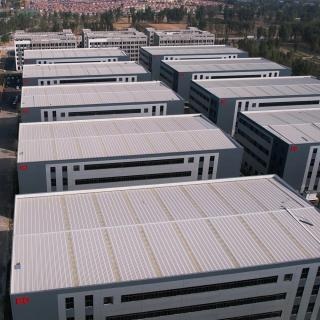

Engeneering Cases
