The metal thermal insulation decorative curtain wall system integrates high-efficiency thermal insulation and high-end decoration, featuring flexible and beautiful shapes. It meets the comprehensive requirements of modern building exterior walls, including durability, beauty, environmental protection, energy conservation, and fire prevention, and can be widely applied to various types of buildings. Customized according to the required length and width specified in the architectural design, it is a practical solution that not only reflects energy conservation awareness but also embodies the design style.

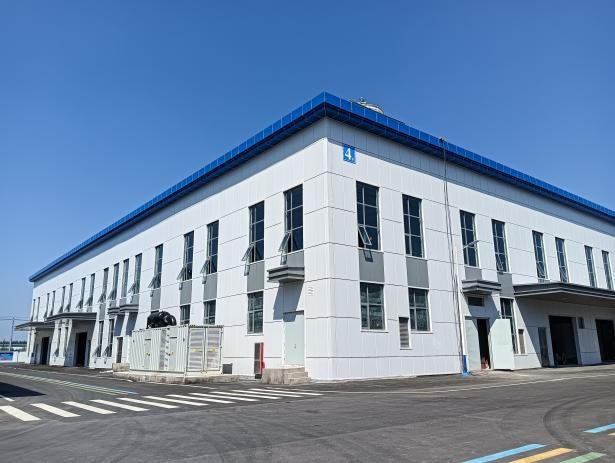

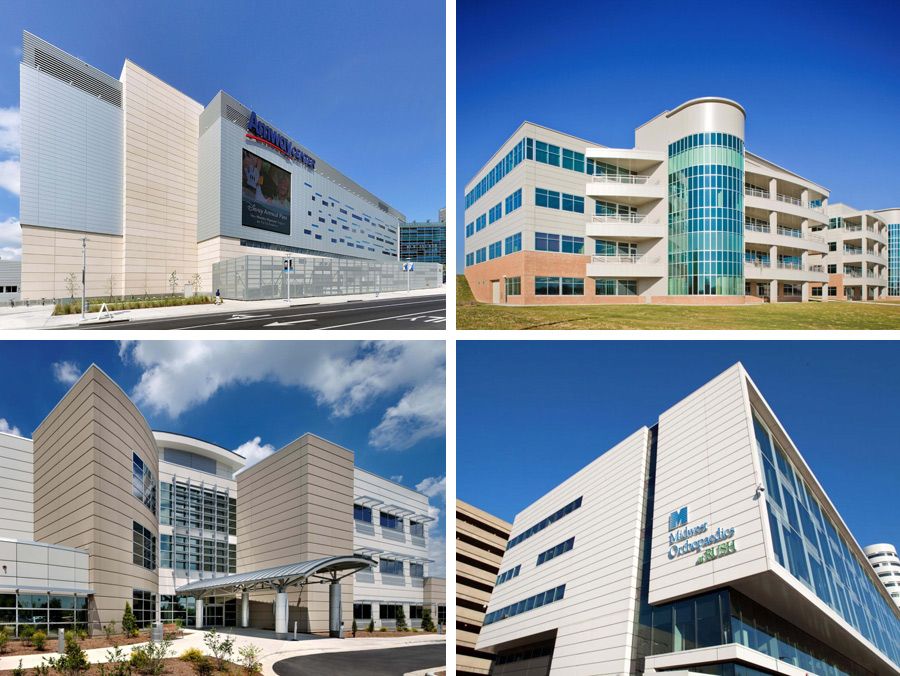

The product is widely used in high-end office buildings, large shopping malls, large sports venues, airports, stations, hospitals, supermarkets, theaters, exhibition centers, schools, hotels, as well as villas, residences, office buildings, and other architectural structures.

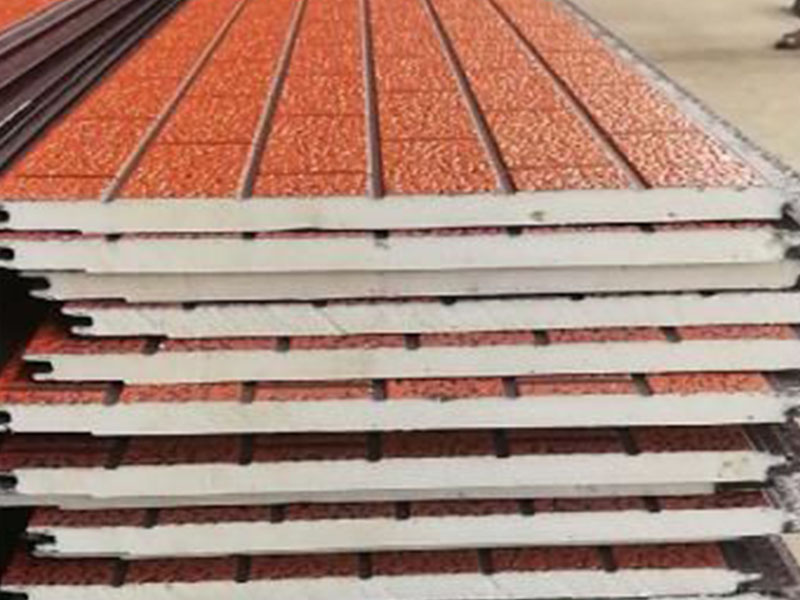

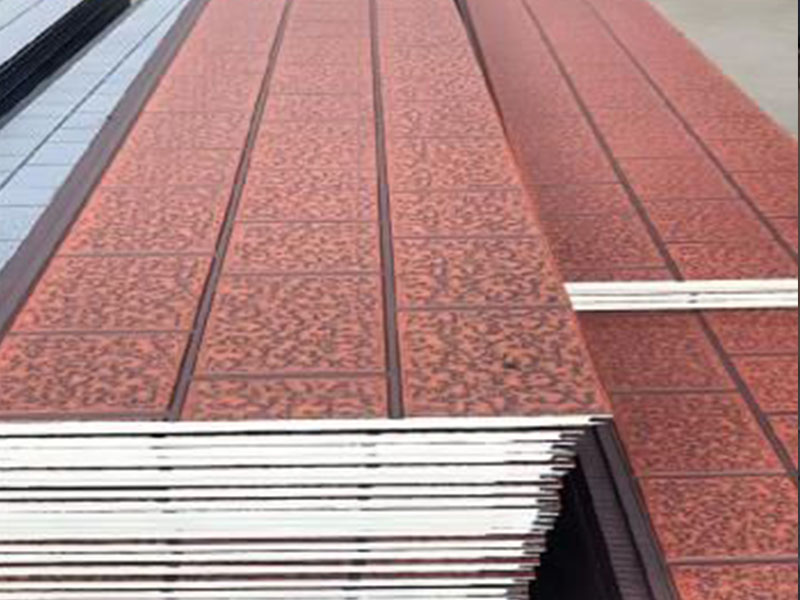

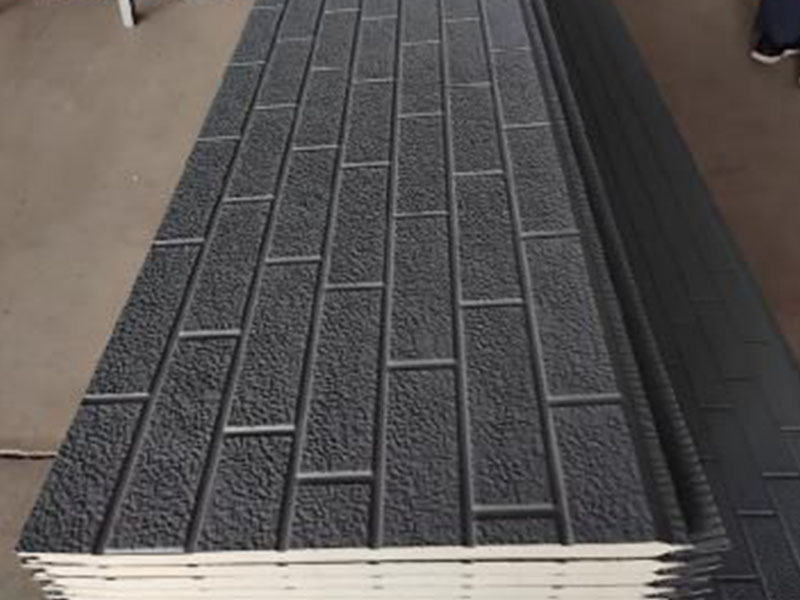

Decorative Pu Sandwich Panels | ||
Standard Panel Width(mm) | 1000 | 3.28ft |
Panel length(mm)) | Standard Size:11900mmCustomized Size: 2000mm-21000mm | 6.56-68.89ft39.04ft |
Standard Panel Thickness(mm) | 45/50/60/75/80/100 | 1.77/1.96/2.36/2.95/3.14/3.93 in |
Standard Density | 40±2kg/m³ | |
Inner steel Sheet(mm) | 0.3-0.8mm | |
Outer Seed Sheet(mm) | 0.3-0.8mm | |
Steed Sheet coating | PPGI color steel(PE、HDP、PVDF)/SS 201/SS 304 | |
Care Heat Conduct Index | ≤0.021w(m·k) | |
Fire Rating | CN B1/ASTM E84 Class B/EN B | |
Stress resilience | ≥150mpa | |
Air tightness | ≥97% | |
Thermal Resistance | ≥47 | |
Color | Color Options Available | |
Certification | ISO\CE\SGS\CNAS | |
Core material | Polyurethane | |
Application | Industrial Building、Clean Room Prefab House |
